HIGH-PERFORMANCE QUENCHING OILS WITH VERY FAST QUENCHING SPEED
DURIXOL high-performance quenching oils distinguish themselves by their very fast quenching speed. They are used primarily for quenching in continuous lines and shaft furnaces with open quenching systems and for quenching in immersion baths after flame and induction heating.
The superior product stability ensures particularly high process reliability. The quenching oils require minimum monitoring and bath care, yet boast virtually unlimited service life.
High evaporation resistance, low viscosity, low specific consumption and particularly good cleaning properties ensure unsurpassed economy even at difficult applications.
| Product | Kinematic viscosity(40°C) | Flash point C.O.C. | Application temperature | Typical areas of application |
|---|---|---|---|---|
| DURIXOL V35 | 10 mm²/s | 160°C | 50 - 80°C | Quenching of mass production components such as screws and fasteners, springs, forgings; especially recommended for the use in continuous furnace lines and in individual cases for batch type quenching in open and sealed quenching systems |
| DURIXOL 7 | 12 mm²/s | 170°C | 40 - 70°C | Quenching of mass production components such as screws and fasteners, springs, forgings, etc. for single or batch quenching in open quenching systems |
| DURIXOL 4 | 11 mm²/s | 160°C | 50 - 80°C | Quenching of mass production components such as screws and fasteners, springs, forgings, etc. for single or batch quenching in open quenching systems |
| DURIXOL 3500 | 8 mm²/s | 168°C | 50 - 80°C | Quenching of mass production components such as screws and fasteners, springs, forgings, etc. for single or batch quenching in open quenching systems |
| DURIXOL 4000 | 13 mm²/s | 197°C | 50 - 130°C | Preferentially suited for the use in sealed quenching systems |
| SYNABOL 9000 | 10 mm²/s | 222°C | 50 - 130°C | May also be used in closed quenching systems |
Typical materials: C35, C45, C75S, 35B4, 37B4, 19MnB4, 20MnB5, 22MnB4, 23MnB4, 32CrB4, 51CrV4, 38Si7, 46Si7, 61SiCr7
Typical range of heat treated parts: Springs
Typical range of heat treated parts: Screws and fasteners
Typical range of heat treated parts : Forged components
HIGH-PERFORMANCE QUENCHING OILS WITH FAST QUENCHING SPEED
Characteristic for our DURIXOL high-performance quenching oils with fast quenching speed is their intensive and at the same time particularly low-stress and low-distortion quenching behaviour. The oils are therefore suited for a wide range of applications in terms of materials, components and heat treatment processes and offer maximum flexibility for use in multi-purpose chamber furnaces, shaft furnaces, pusher type furnaces or fixture hardening systems.
The superior product stability ensures particularly high process reliability. The oils require minimum monitoring and bath care, yet boast virtually unlimited service life.
The extraordinary high evaporation resistance of the oils combined with their low viscosity allows a very good throughflow even through tightly packed batches. Due to the good washability there are advantages with regard to the surface quality. The low specific consumption also enables low process costs.
| Product | Kinematic viscosity(40°C) | Flash point C.O.C. | Application temperature | Typical areas of application |
|---|---|---|---|---|
| DURIXOL W72 | 21 mm²/s | 200°C | 50 - 130°C | Quenching of individual and serial parts of different dimensions, e.g. gears, shafts, axles, bearing components, tool parts, chains, vehicle parts; universally suitable for use in open and closed quenching systems |
| DURIXOL W71 | 21 mm²/s | 200°C | 50 - 110°C | Case-hardened steels, heat-treated steels, tool steels, in open and closed quenching systems, for universal use |
| DURIXOL 7200 | 24 mm²/s | 230°C | 50 - 130°C | Case-hardened steels, heat-treated steels, tool steels, in open and closed quenching systems, for universal use |
| DURIXOL W71HC | 28 mm²/s | 220°C | 50 - 110°C | Case-hardened steels, heat-treated steels, tool steels, in open and closed quenching systems, for universal use |
| SYNABOL 240 | 40 mm²/s | 245°C | 100 - 180°C | For special applications, only in open quenching systems |
Typical materials: C60, 16MnCr5, 20MnCr5, 20MoCr4, 25MoCr4, 18CrNiMo7-6, 100Cr6, 42CrMo4, 31CrV3, 34CrNiMo6, 50CrV4
Typical range of heat treated parts: Transmission chains
Typical range of heat treated parts: Hand tools
Typical range of heat treated parts: shank pinions and spur gears
MULTI-RANGE QUENCHING OILS WITH LOW-DISTORTION QUENCHING PERFORMANCE
The most important feature of the DURIXOL and SYNABOL multi-range quenching oils with low-distortion quenching performance is their increased and at the same time particularly low-stress quenching characteristic. The oils are therefore particularly suited for quenching of parts made of high alloy steels and components with complex geometries prone to distortion and cracking. They enable uniform and low-distortion hardening results.
The special product concept of the multi-range quenching oils also allows adjustments to the quenching characteristics by increasing the oil bath temperature.
The superior product stability ensures particularly high process reliability. The oils require minimum monitoring and bath care even at high application temperatures, yet boast virtually unlimited service life.
The exceptionally high evaporation resistance of the oils allows particularly consistent cooling over the entire cross section of a batch. Increased stability of dimension and form will in addition contribute to the lowering of process costs
| Product | Kinematic viscosity(40°C) | Flash point C.O.C. | Application temperature | Typical areas of application |
|---|---|---|---|---|
| DURIXOL W55HS | 63 mm²/s | 170°C | 50 - 80°C | Quenching of distortion- and crack-sensitive components, such as gear and coupling parts, tools and fine stamped parts; applicable in sealed and open quenching systems |
| DURIXOL 5500 | 37 mm²/s | 253°C | 50 - 130°C | Quenching of components sensitive to distortion and cracking, such as gear parts in closed and open quenching systems and for fixture/ press hardening processes |
| DURIXOL W21 | 33 mm²/s | 215°C | 50 - 130°C | Quenching of components sensitive to distortion and cracking, such as gear parts in closed and open quenching systems and for fixture/ press hardening processes |
| DURIXOL W25 | 46 mm²/s | 228°C | 50 - 150°C | Quenching of components sensitive to distortion and cracking, such as gear parts in closed and open quenching systems and for fixture/ press hardening processes |
| SYNABOL 310 | 56 mm²/s | 300°C | 100 - 180°C | For special applications, only in open quenching systems |
| SYNABOL 2000 | 34 mm²/s | 246°C | 50 - 130°C | For special applications, only in open quenching systems |
Typical materials: 16MnCr5, 20MnCr5, 20MoCr4, 25MoCr4, 18CrNiMo7-6, 90MnCrV8, 100Cr6, X38CrMoV5-3, 45NiCrMoV16-6, 48CrMoV6-6, 115CrV3, X40CrMoV5-1, X153CrMoV12, X210Cr12

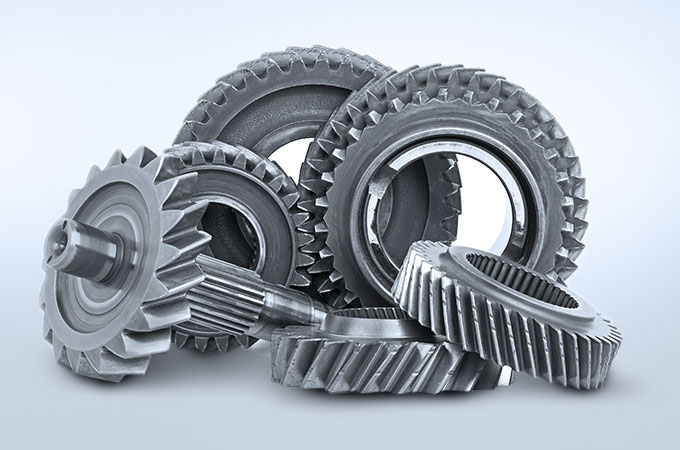

Typical range of heat treated parts: Gear parts
Typical range of heat treated parts: Double spur gears
Typical range of heat treated parts: gear shafts
MARQUENCHING OILS
DURIXOL marquenching oils are characterised by an extraordinary mild quenching performance. They are used for quenching of components of varying sizes and geometries that are particularly prone to distortion and cracking.
They are also suitable for tempering as well as seal cup oil.
The oils show a very high evaporation resistance and a very high flash point. A particular advantage, apart from the extraordinary low-stress quenching, is the superior thermal stability and minimal need for monitoring and bath care.
| Product | Kinematic viscosity(40°C) | Flash point C.O.C. | Application temperature | Typical areas of application |
|---|---|---|---|---|
| DURIXOL HR87-5 | 107 mm²/s | 264°C | 80 - 180°C | Quenching of particularly distortion-sensitive components, e.g. spindles, guides, bearing rings and plates, but also of large-dimension gear parts; suitable for quenching in open and closed quenching systems |
| DURIXOL HR88A | 140 mm²/s | 260°C | 80 - 150°C | Quenching of particularly distortion-sensitive components such as gear parts, spindles, guides, bearing rings, blanks, etc., in open and closed plants |
| DURIXOL HR80A | 116 mm²/s | 268°C | 80 - 180°C | Also for use as tempering oil or oil seal cup oil |
| DURIXOL A650A | 460 mm²/s | 310°C | 150 - 250°C | Also for use as tempering oil or seal cup oil |
Typical materials: 20MnCr5, 18CrNiMo7-6, 50MnCrV8, 115CrV3, 100Cr6, X210Cr12
Typical range of heat treated parts: Large volume gear parts
source: Wittmann Härterei GmbH, Uhingen, Germany
Typical range of heat treated parts: Machine knitting needles
Typical range of heat treated parts: Surgical instruments
VACUUM QUENCHING OILS
DURIXOL vacuum quenching oils provide controlled, low-stress quenching characteristics and are easily degassed. The oils have only a low tendency to absorb moisture and enable particularly bright component surfaces.
The oils are designed especially for use in vacuum furnaces with integrated oil baths. They supplement the high pressure gas quenching process where steel quality and component geometry demand higher quenching performance.
The oils show a very low oil vapour formation and have a high evaporation resistance. The unsurpassed thermal stability with simultaneously minimum need for monitoring and bath care is a particular advantage.
| Product | Kinematic viscosity(40°C) | Flash point C.O.C. | Application temperature | Typical areas of application |
|---|---|---|---|---|
| DURIXOL H222 | 28 mm²/s | 204°C | 40 - 60°C | Quenching of components for engine control and injection technology, the tool industry, the aerospace industry or for gear parts after low-pressure carburizing; suitable for use in vacuum systems |
| DURIXOL H444 | 59 mm²/s | 228°C | 60 - 100°C | Quenching of components sensitive to stress and distortion and of tools, e.g. for the textile industry or for batch quenching of gear parts after low pressure carburising in stable processes |
Typical materials: 16MnCr5, 20CrNiMoS6-4, 27MnCr5, 20MnCr5, 20MnCrB5, 15CrNi6, 14NiCr14, 14NiCrMo13-4, 18CrNiMo7-6
Typical range of heat treated parts: Gear parts
Typical range of heat treated parts: Gear parts
Typical range of heat treated parts: Various toothed components
source:Wittmann Härterei GmbH, Uhingen, Germany
